version 0 de prototipo

README.md

 # Medidor UV-C
 ## Requerimientos funcionales
-Punteo de ideas.
-
 ### Para prototipo 0
  - medir radiación
  - reportar radiación instantanea
@@ -14,18 +12,55 @@ Punteo de ideas.
  - switch para indicar presencia de bandeja con máscaras
  - leb blanco que enciende y apaga y buzzer para indicar fin de tiempo de desinfección
  - si se usa display 7 segmentos:
-   - normalmente muestra información relacionada con la desinfección:
-      - rayitas en el centro ----- si no se detecta la bandeja con máscaras
-      - cuenta regresiva con tiempo faltante para terminar desinfección
-   - un botón muestra la radiación instantanea medida al ser presionada.
-   - un botón reinicia la cuenta regresiva de desinfección.
+   - en una parte muestra información indicando si no hay bandeja o la cuenta regresiva
+   - en otra parte se muestra la radiación instantanea
  - si se usa un diplay tipo matriz de puntos
    - en una fila muestra información indicando si no hay bandeja o la cuenta regresiva
    - en otra fila se muestra la radiación instantanea
-   - un botón reinicia la cuenta regresiva de desinfección.

-El funcionamiento es simple, cuando se detecta que se acciona el switch de presencia de mascara, calcula el tiempo necesario de desinfección de acuerdo a la radiación medida y

+## Diagrama flujo prototipo 0
+'''
+0. POWER_UP
+	 Mide radiación
+
+   Disp_power:  <potencia_medida>
+   Disp_remain: <apagado>
+   -> Bandeja no presente: 1
+
+1. NO_LOAD_PRESENT
+	 Mide radiación (mW/cm2)
+
+   Disp_power:  <potencia_medida>
+   Disp_remain: <apagado>
+
+	 -> Insertan bandeja: 2
+
+2. DOSE_CALCULATION
+	 Tiempo dosis (s) = Dosis_objetivo (mJ/cm2) / radiación medida (mW/cm2)
+
+   Disp_power:  <potencia_medida>
+   Disp_remain: <apagado>
+
+   -> Pasa a 3
+
+3. DOSE_APPLY
+   Cuenta regresiva de tiempo transcurrido
+
+   Disp_power:  <potencia_medida>
+   Disp_remain: <cuenta_regresiva>
+
+   -> Sacan bandeja    : 1
+   -> Cuenta llega a 0 : 4
+
+4. DOSE_END
+   Alarma sonora y visual.
+
+   Disp_power:  <potencia_medida>
+   Disp_remain: <alterna entre 0000 y 8888>
+
+   -> Sacan bandeja: 1
+'''


 ### Para versión con leds
@@ -41,22 +76,29 @@ El funcionamiento es simple, cuando se detecta que se acciona el switch de prese
 ### Caja

 ### Plataforma

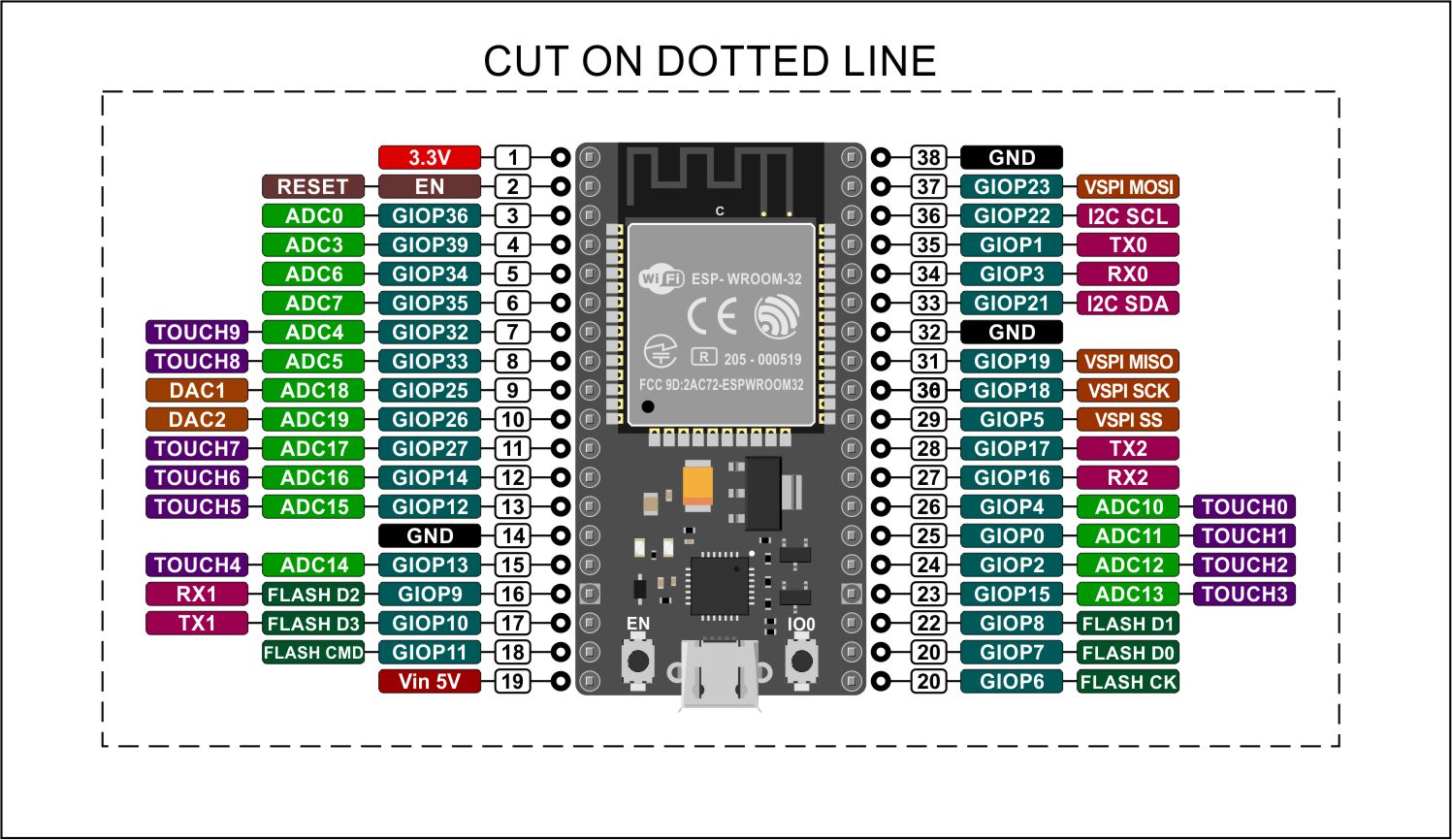

- Arduino mini o ESP32 Pico
+ Arduino mini o ESP32

 ### Sensor UV
-#### Sensores que se consiguen en Uruguay.
+#### Sensores que existen en Uruguay.

-Interfaz analógico:  ML8511
+Interfaz analógico:  ML8511 **No hay stock***
 https://www.robotec.com.uy/productos/S168

-Interfaz digital: VEML6075
+Interfaz digital: VEML6075 **No hay stock***
 https://www.robotec.com.uy/productos/S281

 #### Opciones a nivel mundial
-GUVA-S12SD
+Interfaz analógica: GUVA-S12SD
+https://www.digikey.com/product-detail/en/genicom-co-ltd/GUVA-S12SD/2096-GUVA-S12SDCT-ND/9960959

 ### Display

+### Sensores de bandeja
+
+Magneticos para evitar roturas mecánicas.
+
+https://articulo.mercadolibre.com.uy/MLU-444040526-sensores-magneticos-para-puertas-ventanas-o-portones-_JM?quantity=1#position=2&type=item&tracking_id=e96d47ce-e028-47d7-acd5-4289fe7948e9
+
 ## Otros proyectos

 HYJEIA WIRELESS DOSIMETER:

arduino/prototipo_0/uv_meter/uv_meter.ino

+/* Prototipo de medidor de radiación UV
+ * Sebastian Fernandez
+ * sebfer@fing.edu.uy
+ *
+ * Plataformas:
+ *  - ESP32 de ESPRESSIF
+ *
+ * v0.1
+ *
+ *
+ * LedControl library
+ * Instalarla y editar
+ * #include <avr/pgmspace.h>
+ * https://github.com/wayoda/LedControl
+ *
+ */
+
+#include <pgmspace.h>
+
+
+/*
+Editar "LedControl.h" y cambiar
+# include <avr\pgmspace.h>
+por
+#if (defined(__AVR__))
+# include <avr\pgmspace.h>
+# else
+# include <pgmspace.h>
+# endif
+*/
+#include "LedControl.h"     // 8 digit 7 segment. MAX
+
+#include <WiFi.h>           // WiFi control for ESP32
+
+
+/****************************************
+ * Aplication parameters
+ ****************************************/
+// WiFi access point
+#define WIFI_AP_NAME        "este"
+#define WIFI_PASSWORD       "lapropia"
+
+// UV metering
+int radiation_power_theorical = 20; // mW/cm2
+//int target_dose = 2500; // mJ/cm2
+int target_dose = 200; // mJ/cm2
+
+// Main application loop delay
+int quant = 100; //ms
+
+// Period of sending information
+//int send_delay = 600000;  //10min = 10*60*1000 ms
+int send_delay = 1000;  //1seg = 1000 ms
+
+
+/****************************************
+ * Platform parameters
+ ****************************************/
+// Main application loop timers
+int quant_passed = 0;
+//const int quants_per_sec = 1000 / quant;
+const int quants_per_sec = 1000 / quant;
+
+// Baud rate for debug serial
+#define SERIAL_DEBUG_BAUD    115200
+
+// the Wifi radio's status
+int status = WL_IDLE_STATUS;
+
+// 7 segment
+LedControl lc=LedControl(12,27,14,1);
+// pin 12 is connected to the DIN pin
+// pin 27 is connected to the CLK pin
+// pin 14 is connected to the CS pin
+// 1 as we are only using 1 MAX7219
+char digitos_disp1[4] = {};
+char digitos_disp2[4] = {};
+
+// alarma
+const int alarm_led_pin = 26;
+const int alarm_buz_pin = 25;
+int alarm_state = LOW;
+
+// load detection
+const int load_status_pin = 33;
+int load_present = LOW;
+
+// Period of sending information
+int send_passed = 0; // Time passed after data was sent, milliseconds.
+
+
+// UV metering
+int radiation_power = radiation_power_theorical;
+int total_desinfection_time =  target_dose/radiation_power  ; // seconds
+int remaining_desinfection_time = total_desinfection_time;
+
+// States
+enum State_enum {POWER_UP, NO_LOAD_PRESENT, DOSE_CALCULATION, DOSE_APPLY, DOSE_END};
+uint8_t state = POWER_UP;
+
+/****************************************
+ * SETUP
+ ****************************************/
+void setup() {
+// Initialize serial for debugging
+  Serial.begin(SERIAL_DEBUG_BAUD);
+
+// the zero refers to the MAX7219 number, it is zero for 1 chip
+  lc.shutdown(0,false);// turn off power saving, enables display
+  lc.setIntensity(0,10);// sets brightness (0~15 possible values)
+  lc.clearDisplay(0);// clear screen
+
+// initialize alarm pins
+pinMode(alarm_led_pin, OUTPUT);
+ledcSetup(0,1E5,12);
+ledcAttachPin(alarm_buz_pin,0);
+
+// init load sensor pin
+pinMode(load_status_pin, INPUT);
+
+// Initialize Wifi
+//  Serial.println("==== wifi setup ====");
+//  WiFi.begin(WIFI_AP_NAME, WIFI_PASSWORD);
+//  InitWiFi();
+
+}
+
+/****************************************
+ * MAIN LOOP
+ ****************************************/
+
+void loop() {
+  delay(quant);
+
+switch(state)
+  {
+    ///////////////////////////////////////
+    case POWER_UP:
+      Serial.println("state: POWER_UP");
+      if(loadPresent()==LOW){
+        state = NO_LOAD_PRESENT;
+      }
+
+      lc.clearDisplay(0);
+      // Get radiation power and show it.
+      radiation_power = getRadiationPower();
+      snprintf(digitos_disp1,5,"%04d", radiation_power);
+      displayRadiationPower(digitos_disp1);
+
+      break;
+
+    ///////////////////////////////////////
+    case NO_LOAD_PRESENT:
+      Serial.println("state: NO_LOAD_PRESENT");
+      if(loadPresent()==HIGH){
+        state = DOSE_CALCULATION;
+      }
+
+      lc.clearDisplay(0);
+      // Get radiation power and show it.
+      radiation_power = getRadiationPower();
+      snprintf(digitos_disp1,5,"%04d", radiation_power);
+      displayRadiationPower(digitos_disp1);
+
+      break;
+
+   ///////////////////////////////////////
+   case DOSE_CALCULATION:
+      Serial.println("state: DOSE_CALCULATION");
+      state = DOSE_APPLY;
+
+      quant_passed = 0;
+      remaining_desinfection_time = total_desinfection_time;
+
+      break;
+
+   ///////////////////////////////////////
+   case DOSE_APPLY:
+      Serial.println("state: DOSE_APPLY");
+
+      quant_passed += 1;
+
+      if (quant_passed >= quants_per_sec){
+        remaining_desinfection_time -=1;
+        quant_passed = 0;
+      }
+
+      if(loadPresent()==LOW){
+        state = NO_LOAD_PRESENT;
+      } else if (remaining_desinfection_time == 0){
+        state = DOSE_END;
+        quant_passed = 0;
+        alarm_state = LOW;
+      }
+
+      // Get radiation power and show it.
+      radiation_power = getRadiationPower();
+      snprintf(digitos_disp1,5,"%04d", radiation_power);
+      displayRadiationPower(digitos_disp1);
+      // Show remaining time
+      snprintf(digitos_disp2,5,"%04d", remaining_desinfection_time);
+      displayRemainingDesinfectionTime(digitos_disp2);
+
+      break;
+
+   ///////////////////////////////////////
+   case DOSE_END:
+      Serial.println("state: DOSE_END");
+
+      quant_passed += 1;
+
+      if (quant_passed >= quants_per_sec){
+        quant_passed = 0;
+        alarm_state = not(alarm_state);
+
+        digitalWrite(alarm_led_pin, alarm_state);
+        if (alarm_state) {
+          ledcWriteTone(0,800);
+          snprintf(digitos_disp2,5,"%04d", 0);
+          displayRemainingDesinfectionTime(digitos_disp2);
+        }
+        else {
+          ledcWriteTone(0,0);
+          snprintf(digitos_disp2,5,"%04d", 8888);
+          displayRemainingDesinfectionTime(digitos_disp2);
+        }
+
+
+      }
+
+      if(loadPresent()==LOW){
+        state = NO_LOAD_PRESENT;
+        ledcWriteTone(0,0);
+        digitalWrite(alarm_led_pin, 0);
+
+      }
+
+      break;
+  }
+  // Reconnect to WiFi, if needed
+  /*
+  if (WiFi.status() != WL_CONNECTED) {
+    reconnect();
+    return;
+  }
+  */
+}
+
+
+/****************************************
+ * AUX FUNCTIONS
+ ****************************************/
+
+int loadPresent()
+{
+  // HIGH if load to germinize present
+  return digitalRead(load_status_pin);
+}
+
+int getRadiationPower()
+{
+  return radiation_power_theorical;
+}
+
+void displayRadiationPower(const char *chars4) {
+  //lc.clearDisplay(0);
+  //for (int i = 0; i < 5 && chars4[i] != 0; i++) {
+  for (int i = 0; i < 4; i++) {
+    lc.setChar(0, 7 - i, chars4[i], false);
+  }
+}
+
+void displayRemainingDesinfectionTime(const char *chars4) {
+  //lc.clearDisplay(0);
+  for (int i = 0; i < 4; i++) {
+    Serial.print(i);
+    Serial.print("-->");
+    Serial.println(chars4[i]);
+    lc.setChar(0, 3 - i, chars4[i], false);
+  }
+}
+
+
+void InitWiFi()
+{
+  Serial.println("Connecting to AP ...");
+  // attempt to connect to WiFi network
+
+  WiFi.begin(WIFI_AP_NAME, WIFI_PASSWORD);
+  while (WiFi.status() != WL_CONNECTED) {
+    delay(500);
+    Serial.print(".");
+  }
+  Serial.println("Connected to AP");
+}
+
+void reconnect() {
+  // Loop until we're reconnected
+  status = WiFi.status();
+  if ( status != WL_CONNECTED) {
+    WiFi.begin(WIFI_AP_NAME, WIFI_PASSWORD);
+    while (WiFi.status() != WL_CONNECTED) {
+      delay(500);
+      Serial.print(".");
+    }
+    Serial.println("Connected to AP");
+  }
+}
+
+/****************************************
+ * Trash
+ ****************************************/
+//lc.setRow(0,0,B00000001); // on g segment (center)
